1. Brief Introduction
This machine is used for the dusting and polishing of the capsules and for sorter unfilled capsules and separating extra metal mixed with the capsules. It is used together with the capsule-polisher.it can be used individually. The Metal Detector can memorize and make up its functions. It possesses 200 product storages and 1000 accidental memories.
2. Main Technical Parameter
|
Model |
QCP129-M |
|
Capsule Model No. |
00# 0# 1# 2# 3# 4# |
|
Inlet Height |
Height：782mm DIM：Φ200mm |
|
Outlet Height |
Height：845mm DIM：65*50mm |
|
Dimension |
1099*475*1405mm |
|
Output Capacity(pcs/h) |
300000pcs/h |
|
Sensitivity |
Fe Φ0.2mm; SUSFe0.4 mm |
|
Weight |
125kg |
|
Packing box DIM/Weight |
1000*600*1600/48kg |
3. Mechanical/Electrical Design
|
Materials |
Stainless Steel 1.4301, surface polishing treatment |
|
Parts in touch with product |
Stainless Steel 304, PP |
|
Weed Out Action |
Electric Magnetic Control, Free of Maintenance |
|
Ingress protection |
IP65 |
|
Source Supply Requirements |
Good stable and in case of other electro-magnetism, the current supply wire should be layed out individually, producing energy loss 0.035kw |
|
Current consumption |
About 220m A/115V, About120m A/230V |
|
Operating voltage |
100-240VAC（±10%），50/60Hz |
|
Compressed Air |
0.3 m3/min-0.3MPa |
|
Vacuum |
3.0 m3/min-0.02MPa |
|
Current Source Fuse |
1.6A, Slowly Melting |
|
Mains cable |
1.8m-long cable with a plug |
|
Eject duration |
adjustable from 0.05 to 60 sec |
|
Automatic Monitor |
Monitor of the monitoring coils and current output, automatic alarming system for equipment accidents. |
|
Operating Panel |
（German, English, French, Spanish, Italian, Swedish, Finnish, Dutch, Danish, Japanese）， Multi-language system,5 operating buttons,3LED display lamps ,2 switches and 1 turning knob. |

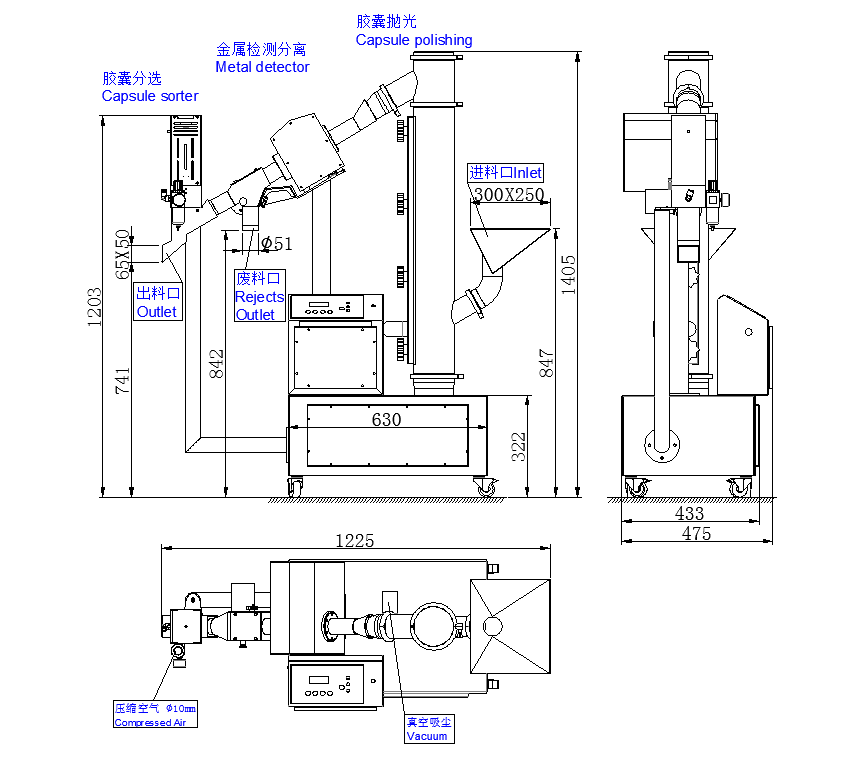

4. Machine Structure
