FG Series Fluid Bed Dryer
1. Brief Introduction
Fluid-bed processing is mainly used for the mixing of powder material, drying and granulating in pharmaceutical, food, chemical, agricultural and sideline product processing industries, such as tablet, instant powder and condiment granules. The process of feeding and discharging material for this equipment should be finished in the airtight space to avoid the powder spreading to the working environment. It’s controlled by PLC.
2. Main Technical Parameter
Model
FG-15
FG-30
FG-60
FG-120
FG-200
FG-300
FG-500
Total Volume(L)
45
100
220
420
670
1000
1500
Container
Diameter(mm)
550
700
1000
1200
1400
1600
1800
Capacity(kg/batch)
15
30
60
120
200
300
500
Steam Pressure (MPA)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
Steam Consumption(kg/h)
20
60
120
140
180
310
400
Compressed Air Pressure (Mpa)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
Compressed Air Consumption(m³/min)
0.6
0.6
0.9
0.9
1.1
1.1
1.5
Air Blower (Kw)
3
5.5
11
18.5
22
30
45
Electric
Heating Power (Kw)
12
21
30
48
87
163
185
Noise(db)
Air Blower
Seprated, Noise Less than 75db

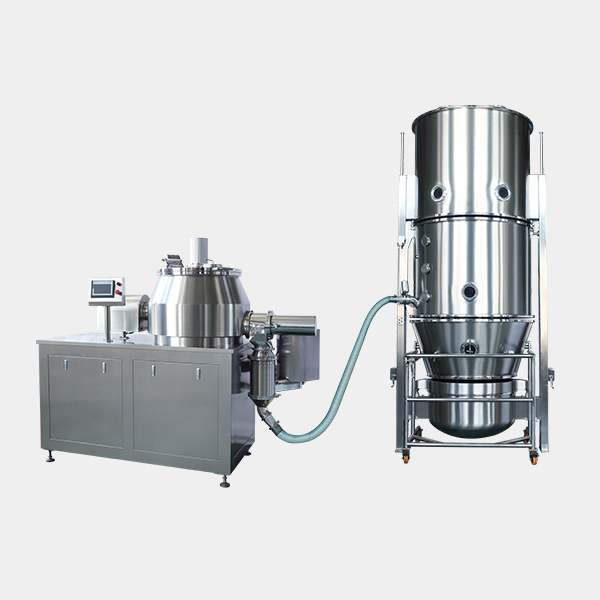

3. Production Line
